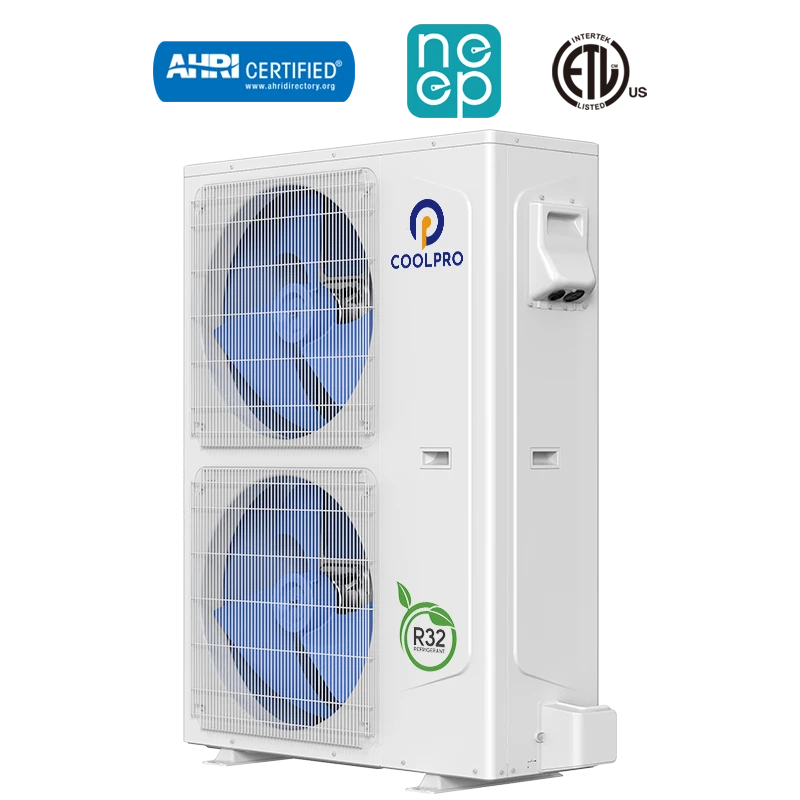

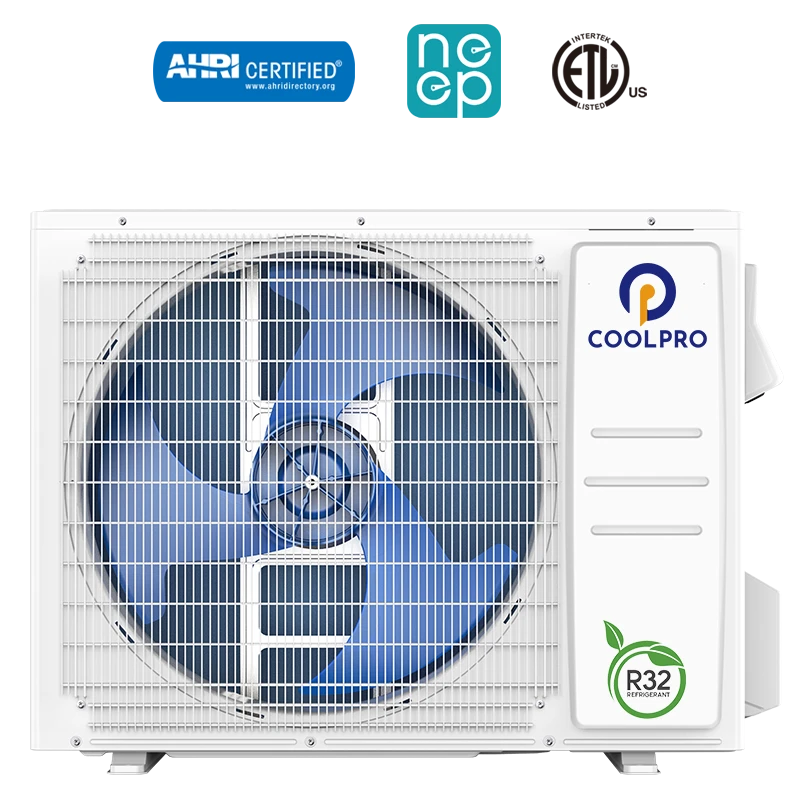

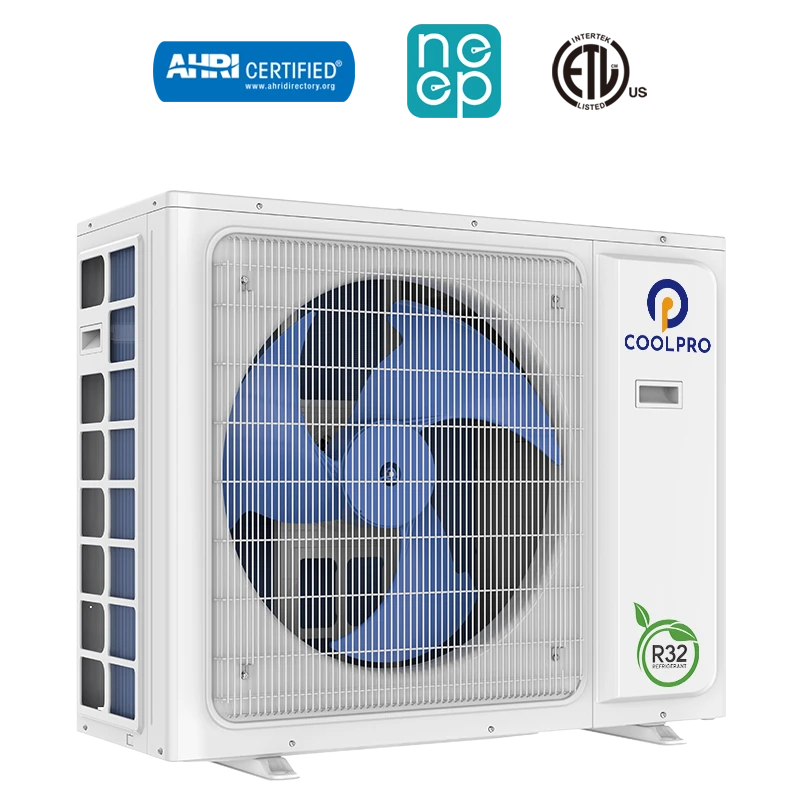

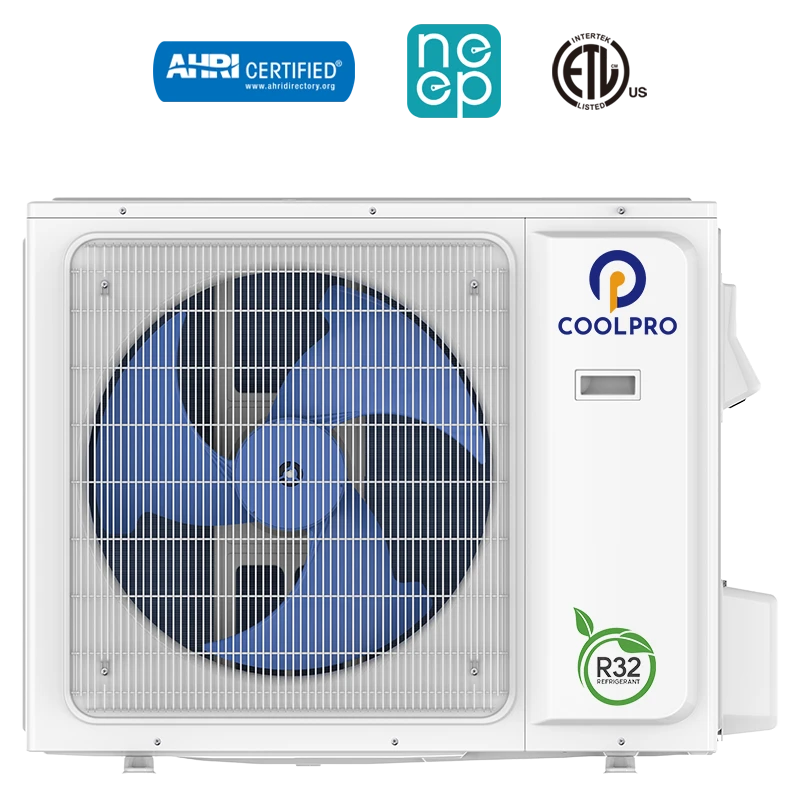

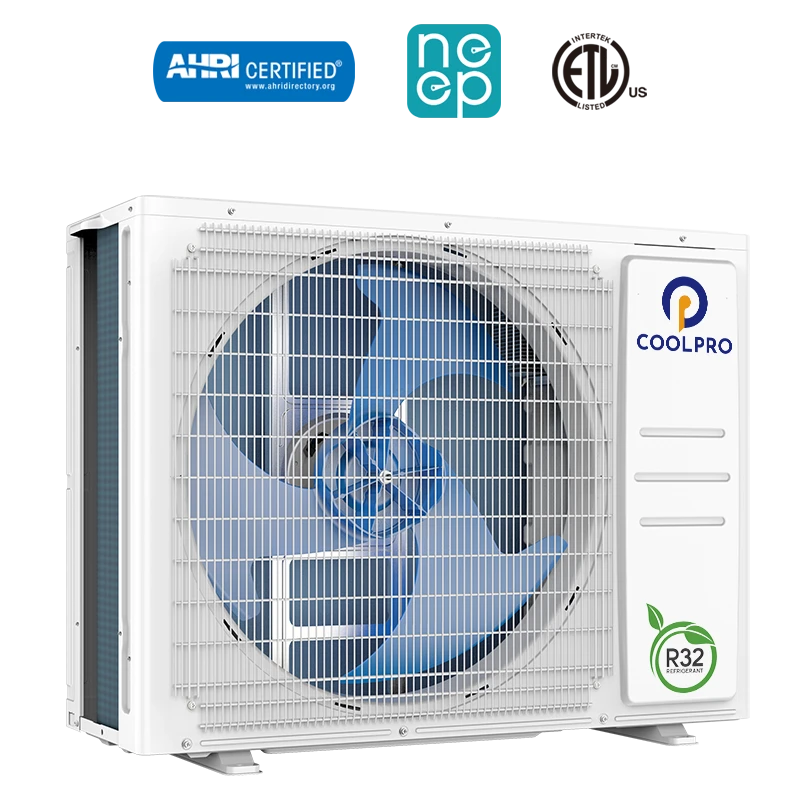

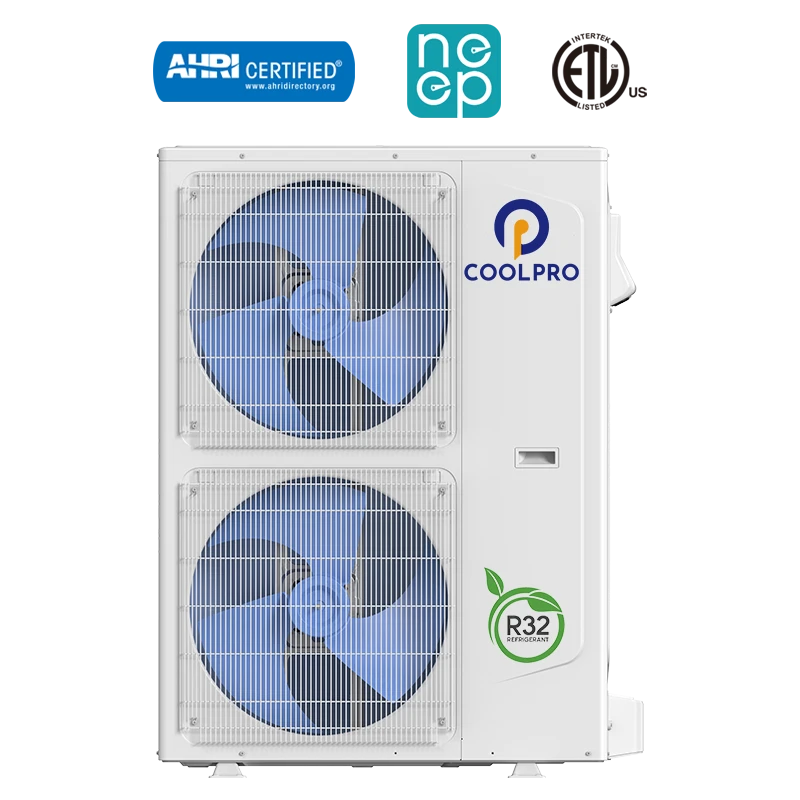

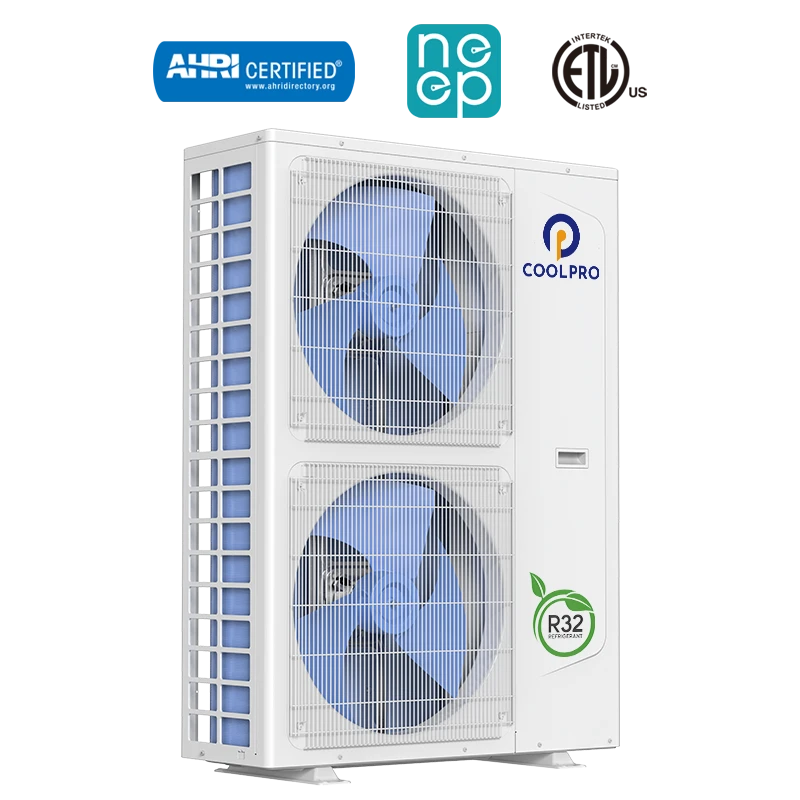

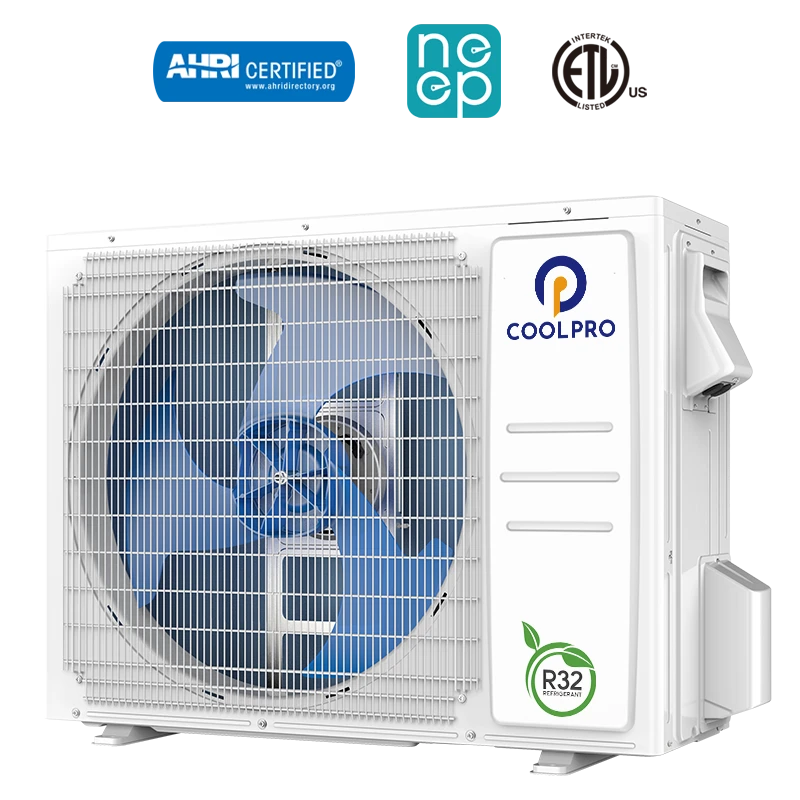

Inverter Side Discharge- Arctic Series

Up to 19.2 SEER2
Up to 10.0 HSPF2-4

18-60 kBTU/h 208-230/1/60

FEATURES：

  • Reliable operation in extreme conditions: effective heating down to -13°F and cooling up to 125°F ambient for year-round comfort
  • Wide voltage range (170–263V) for stable performance during power fluctuations and PCB surge protection
  • Extended refrigerant piping: up to 164 ft total length and 98 ft height difference for greater installation flexibility

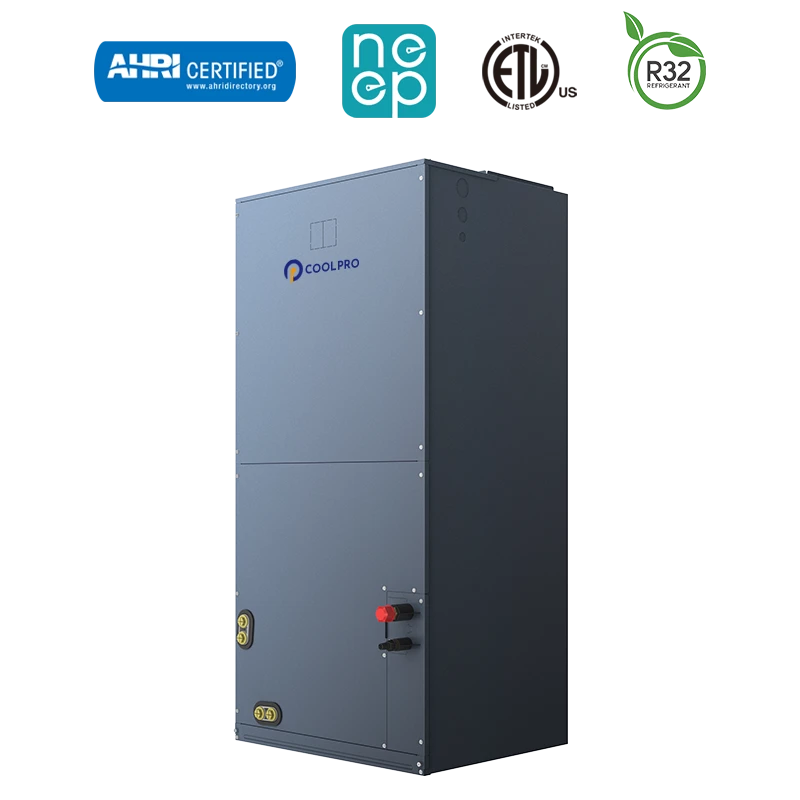

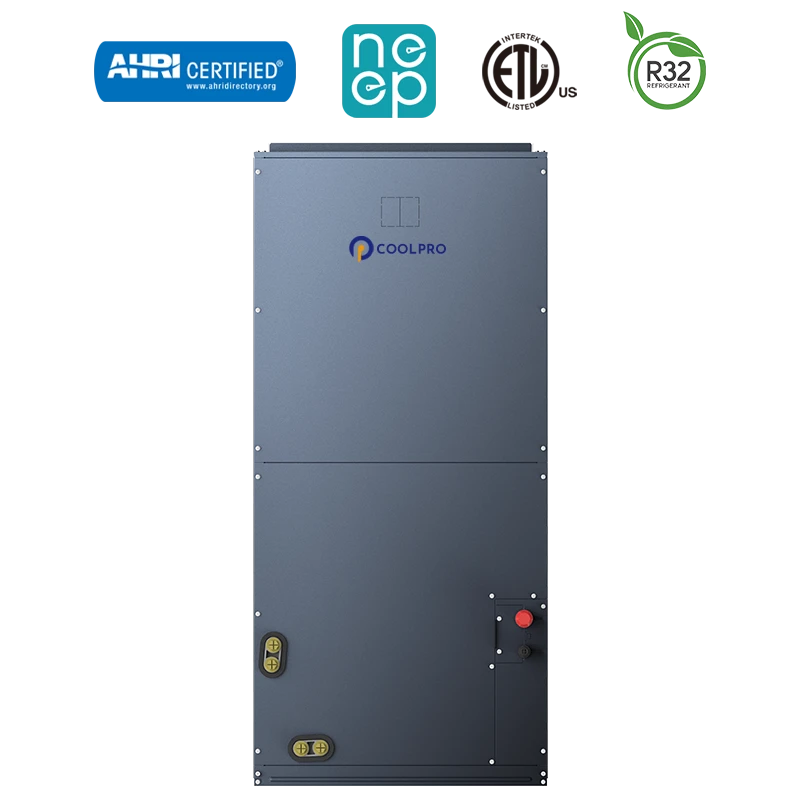

  • Four-position installation versatility: Upflow, Downflow, Horizontal Left, Horizontal Right
  • Auto-restart after power interruptions, automatically resuming prior settings
  • Refrigerant cooling system to reduce PCB temperatures and prevent overheating
  • Dual-protocol communication support (24V and 485) for seamless integration
  • High external static pressure: rated up to 0.5 in. W.C., maximum up to 1.0 in. W.C.
  • AHRI certified and ETL listed
